Home > Customised installations > Wine cellar - Wineroom > Single temperature Cellar – 4 full walls – Ageing or service - humidifier and heating system Wineroom

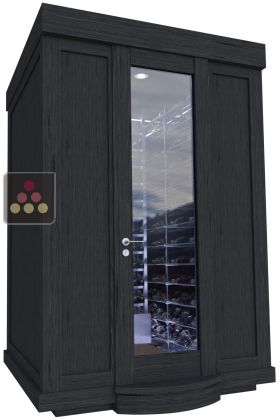

Single temperature Cellar – 4 full walls – Ageing or service - humidifier and heating system


WINEROOM
Ref. : ACI-WNR710

Single temperature Cellar – 4 full walls – Ageing or service - humidifier and heating system
France
  • Temperature number : 1
  • Range of adjustment : Adjustable from 8 to 18 ° C
  • Capacity of the model : 420-830 bottles
  • Level of range : Deluxe product excellence
  • Model colour : Available in 16 colours
  • Door frame colour : Available in 16 colours
  • Dimensions : H2350*W1550*D1550 mm
  • Installation temperature min / max : 0°C / 32°C

Price on demand

CONTACT US

Your product's features :

Exterior Completions :
To be defined
Indoor Equipment :
To be defined
:
To be defined
Direction of the door :
To be defined
Doorstep :
To be defined
Color Custimazation front :
To be defined
Floor Insulation :
To be defined
Color Exterior body Evaporator :
To be defined
Set drain water pump :
To be defined
Water pressure limiter :
To be defined
Extension tube option :
To be defined
Led backlighting evaporator :
To be defined
Wine Supervisor kit :
To be defined

Your product's options:

1 Exterior Completions

Hide the option

Brushed varnish on Natural Pine tree wood

Incompatible avec l'option

Brushed varnish on Natural Pine tree wood
Brushed Ash Grey varnished Pine Tree

Incompatible avec l'option

Brushed Ash Grey varnished Pine Tree
Brushed Ebony varnish on Pine Tree

Incompatible avec l'option

Brushed Ebony varnish on Pine Tree
Brushed Savoyard varnish on Pine Tree

Incompatible avec l'option

Brushed Savoyard varnish on Pine Tree
Soft Natural varnish on Pine Tree

Incompatible avec l'option

Soft Natural varnish on Pine Tree
Soft Ash Grey varnish on Pine Tree

Incompatible avec l'option

Soft Ash Grey varnish on Pine Tree
Soft Ebony wood varnish on Pine Tree

Incompatible avec l'option

Soft Ebony wood varnish on Pine Tree
Soft Savoyard varnish on Pine Tree

Incompatible avec l'option

Soft Savoyard varnish on Pine Tree

2 Indoor Equipment

See the option

Incompatible avec l'option

Incompatible avec l'option

Incompatible avec l'option

3

See the option

Full door
Glass door

4 Direction of the door

See the option

Door with hinges on right hand side

Incompatible avec l'option

Door with hinges on right hand side
Door with hinges on left hand side

Incompatible avec l'option

Door with hinges on left hand side

5 Doorstep

See the option

Step-less Doorway W1550xD1550xH2360
The sublevel outdoor backlight reflects onto the floor through the 3 glass sides

Incompatible avec l'option

Step-less Doorway W1550xD1550xH2360The sublevel outdoor backlight reflects onto the floor through the 3 glass sidesThe sublevel outdoor backlight reflects onto the floor through the 3 glass sides
Basic Doorstep entry. W1550xD1700xH2360
A wooden step facilitates the cabinet entry. The sublevel outdoor backlight reflects onto the floor through the 3 glass sides, but is hidden by the doorstep

Incompatible avec l'option

Basic Doorstep entry. W1550xD1700xH2360A wooden step facilitates the cabinet entry. The sublevel outdoor backlight reflects onto the floor through the 3 glass sides, but is hidden by the doorstepA wooden step facilitates the cabinet entry. The sublevel outdoor backlight reflects onto the floor through the 3 glass sides, but is hidden by the doorstep

6 Color Custimazation front

See the option

Basic Gloss Black

Incompatible avec l'option

Basic Gloss Black
Gold Mirror

Incompatible avec l'option

Gold Mirror
Cedar wood

Incompatible avec l'option

Cedar wood
Lipstick Red
Intense Blue
Burgundy vine
Smooth Green
Orange Pop

Incompatible avec l'option

Orange Pop
Brushed Copper
Brushed silver
Glitter Black
Vintage Gold
Polar Gray

Incompatible avec l'option

Polar Gray

7 Floor Insulation

See the option

Standard feature : Without Floor Insulation
This feature does not include an underfloor heating system nor heating plates

Incompatible avec l'option

Standard feature : Without Floor InsulationThis feature does not include an underfloor heating system nor heating platesThis feature does not include an underfloor heating system nor heating plates
Optional Wineroom: Underfloor heating system insulation - Height = +70mm
The floor includes either an underflor heating system or underfloor heating plates. This heightens the cellar of an additional 70mm

Incompatible avec l'option

Optional Wineroom: Underfloor heating system insulation - Height = +70mmThe floor includes either an underflor heating system or underfloor heating plates. This heightens the cellar of an additional 70mm The floor includes either an underflor heating system or underfloor heating plates. This heightens the cellar of an additional 70mm

8 Color Exterior body Evaporator

See the option

White body

Incompatible avec l'option

White body
Matte black body

9 Set drain water pump

See the option

Without pump

Incompatible avec l'option

Without pump
With drain water pump

Incompatible avec l'option

With drain water pump

10 Water pressure limiter

See the option

Without limiter kit
Humidifier water inlet pressure must not exceed 2.8 bar

Incompatible avec l'option

Without limiter kit Humidifier water inlet pressure must not exceed 2.8 barHumidifier water inlet pressure must not exceed 2.8 bar
Secure connection kit for humidifier
Included : 10m 1/4

Incompatible avec l'option

Secure connection kit for humidifier Included : 10m 1/4" polyethylene flexible tubing, 1x overflow safety valve, 1x isolation valve 1/4" 1/4", 1x pressure limiter valve 1/4", 3x 1/4" JG - 3/4" F connection, 1x Y 1/4" 1/4" 1/4"Included : 10m 1/4

11 Extension tube option

See the option

Without tube extension

Incompatible avec l'option

Without tube extension
With 20 meter extension tube

Incompatible avec l'option

With 20 meter extension tube

12 Led backlighting evaporator

See the option

Without Led backlighting

Incompatible avec l'option

Without Led backlighting
With Led backlighting plug & play

Incompatible avec l'option

With Led backlighting plug & play

13 Wine Supervisor kit

See the option

Remote control
The air conditionner is equipped with a remote control enabling to consult the cellar constants and to modify the settings. The scope of the remote control depends on the number of walls and thickness. Around 100m on open field

Incompatible avec l'option

Remote controlThe air conditionner is equipped with a remote control enabling to consult the cellar constants and to modify the settings. The scope of the remote control depends on the number of walls and thickness. Around 100m on open fieldThe air conditionner is equipped with a remote control enabling to consult the cellar constants and to modify the settings. The scope of the remote control depends on the number of walls and thickness. Around 100m on open field
Modbus connection to home automation
Synchronization between the air conditionner and your home automation or the supervision of your store via a Modbus communication protocol. Includes a wireless router to radio frequency RS485 and a 230V/mini-USB power supply.

Incompatible avec l'option

Modbus connection to home automationSynchronization between the air conditionner and your home automation or the supervision of your store via a Modbus communication protocol. Includes a wireless router to radio frequency RS485 and a 230V/mini-USB power supply.Synchronization between the air conditionner and your home automation or the supervision of your store via a Modbus communication protocol. Includes a wireless router to radio frequency RS485 and a 230V/mini-USB power supply.
Mobile App access V3
A dedicated mobile application enables you to monitor your wine cellar whereever you are : remote control of the air conditionner settings, constants records, real-time alerts, reproduction of natural cellars profiles

Incompatible avec l'option

Mobile App access V3A dedicated mobile application enables you to monitor your wine cellar whereever you are : remote control of the air conditionner settings, constants records, real-time alerts, reproduction of natural cellars profilesA dedicated mobile application enables you to monitor your wine cellar whereever you are : remote control of the air conditionner settings, constants records, real-time alerts, reproduction of natural cellars profiles

Share this product

Technical data

General features :

Capacity of the model :
420-830 bottles
Capacity min / max :
420 / 830 bottles
Installation :
Free standing
Level of range :
Deluxe product excellence
Door version :
:
Monobloc
:
No
Model colour :
Available in 16 colours
Door frame colour :
Available in 16 colours
Installation temperature min / max :
0°C / 32°C
Warranty :
2 years parts, labour and travel

Equipment :

Humidity :
Regulation by electronic humidifier
Hygrometer :
No
Lock :
Yes
Handle :
Yes
Adaptable interior:
Yes
Wheels :
No
Alarm :
Yes
Lighting :
White LEDs inside
Switch: on / off:
Yes

Regulation :

Temperature number :
1
Range of adjustment :
Adjustable from 8 to 18 ° c
Regulation :
Electronic
Setting :
Display :
Digital with wireless remote control

Technologies :

Cold production :
Cold generated by compressor
Heat production :
Yes
Heat trigger :
Automatic
Winter function :
Yes
Nature of the side walls :
Wood
Type of back wall :
Wood
Type of cladding:
Solid wood
No vibration :
Compressor mounted on anti-vibration damper
Type of gas :
R290
Electrical power (w) :
780
Electrical current (a) :
4

:

:
780 W
:
373 W
:
405 m3/h
:
Black
Type of gas :
R290

:

:
452 m3/h
:
800 W
:
Kit hgr%

Dimensions :

Dimensions :
H2350*W1550*D1550 mm
Net weight :
332 kg
Packaging dimensions :
H2600*W1750*D1750 mm
Gross weight :
405 kg
Volume :
7.96 m3
Origin of manufacture:
France France

The information may contain technical inaccuracies or typographical errors. They are not contractual and are subject to change without notice.
